Extra Information

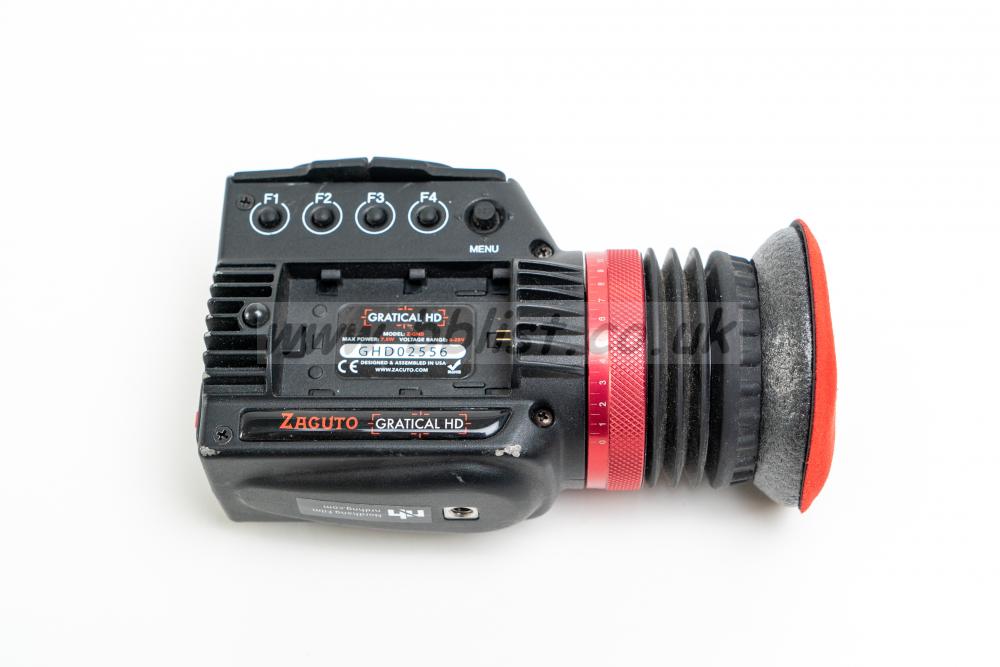

The Micro OLED display in the Gratical EVF gives extremely high contrast and true blacks, and superb resolution. When combined with the custom optics, you have a bright, sharp, high contrast image with a generous field of view.

CONNECTIONS
HDMI - 1.4b compliant, resolutions up to 1080p/60, loop out
HD-SDI - Resolutions up to 1080p/60, loop out
Cross Conversion - HDMI to HD-SDI, independent LUT on output stream

POWER
Voltage Input 6-28V
Compatible with LP-E6 battery (7.8V 1800mAH LiON)

Internal Features
Includes many user aids such as Histogram, Waveform and Vectorscope. You can also move video to the top or bottom of the viewfinder image and customise your readouts around this. This new finder also has LUT creation facility - you can import, create and save LUTS with the option with viewing of your custom settings for example you can preview your preferred settings in the EVF while viewing the RAW image on a separate monitor. You can also customise what data is available in the EVF (eg recording light, histograms) which can be different to that displayed on a client monitor.

Physical Features
Control-wise there are four programmable side-mounted buttons and a full menu joystick and the dioptre adjustment has been re-designed with a range from -1 to +4. Mounting options include a side mounted rosette fitting for either third party mounts or Zacuto's own Access mount, plus a 14"-20 tripod type bush on the bottom. The Gratical uses the familiar Zacuto eyecup design with anti-fog protection and the long runtime battery is removable.
